A friend loaned me a die so I can thread the end of a tube to use as an axle. It seems it’s not as easy as it should be. Maybe I ought to hire this one out.
Making threads on tubing
- Thread starter Chris In Milwaukee
- Start date
Chris In Milwaukee
Ain’t no mo’
Honestly no idea. He handed me the die for the tube I asked him for. I didn’t ask much more. He’s a hydraulics machinist kinda guy, so presumed he knew what I needed. But I reckon one can’t assume. Looks like it was hungry for a lot more material than I expected.
It's pipe so it will be NPT or UNF. NPT is by far the most popular. NPT has a taper. Just like that photo above.
Chris In Milwaukee
Ain’t no mo’
I couldn’t see any markings on it that indicated the size. It just said “start other side”.
Chris In Milwaukee
Ain’t no mo’

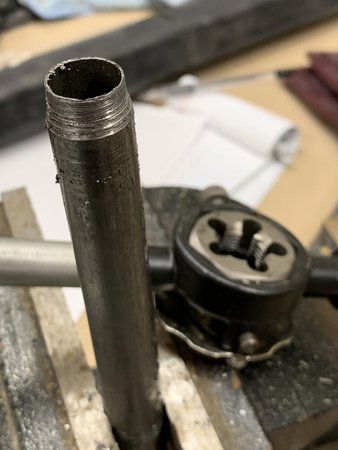

Since this is a “vehicle” axle, I presume it’s a flat thread. But the carnage above sure looks tapered, doesn’t it?
Chris In Milwaukee
Ain’t no mo’
The blueprints for this axle say ‘3/4”x.065” fine thread’ which seems a little obscure. So I asked for that die and here we are.
The blueprints for this axle say ‘3/4”x.065” fine thread’ which seems a little obscure. So I asked for that die and here we are.
That's a standard 3/4 OD pipe with a .065 wall thickness. NPT is not fine thread and has 14 TPI in 3/4. Time to make a phone call to the company and ask them what standard the threads are.
kasnerd
Danny's Red Headed Step Child
- Joined
- Aug 15, 2019
- Messages
- 4,791
You should be able to take that die to any plumbing shop and get it threaded properly in the machine. Doing this by hand is a fool's errand because the force required when nearly done (because of the taper) will cause wobble and eat all the threads you just cut.
